Tuxing
TUXING TXED011 4500Psi 300Bar 30Mpa PCP Air Compressor Electric Air Pump Pneumatic Rifle High Pressure Paintball Airgun 6.8L Tank Diving


4500PSI Double Cylinder PCP Air Compressor
TXED011 is two stage cylinder compressor heads,Fast filling speed,Suitable for filling large capacity tank.working pressure 300bar/4500psi/30mpa,It is a water-cooled compressor, Designed with two-stage compression, which requires the use of water and oil,it can be used for diving,hunting,fire fighting, paintball,etc.
shut down manually
Fan and Water cooling
Built-in Oil/Water Separator
Fill 0-6.8L Cylinder
Model:TXED011
Item size: 50*37*43cm
Weight:28kg
Voltage: 220v/50hz,110v/60hz
Power: 2200W
Inflating Rate: 2800R/min
Working Pressure: 30MPa/300Bar/4500Psi
Tank Capacity:0-6.8L
Compression Stage: Two-stage reciprocating
Shut Down:manually stop
Cooling: Fan and water cooling
Lubricating Oil: ISO VG 46
Oil Capacity:0.4L
High Pressure Performance
This compressor features a 2200W high-power copper motor and excellent inflation performance. The maximum working pressure is 4500PSI, the inflating rate is 2800R/min, and the flow rate is 40L/min.Two Stage Piston Cylinder Head
Designed with two-stage compression to ensure stable performance,Fast filling speed,Suitable for filling large capacity tank,0.5L from 0-4500psi about 3--5min.
6.8L from 0-4500psi about 30-45min.

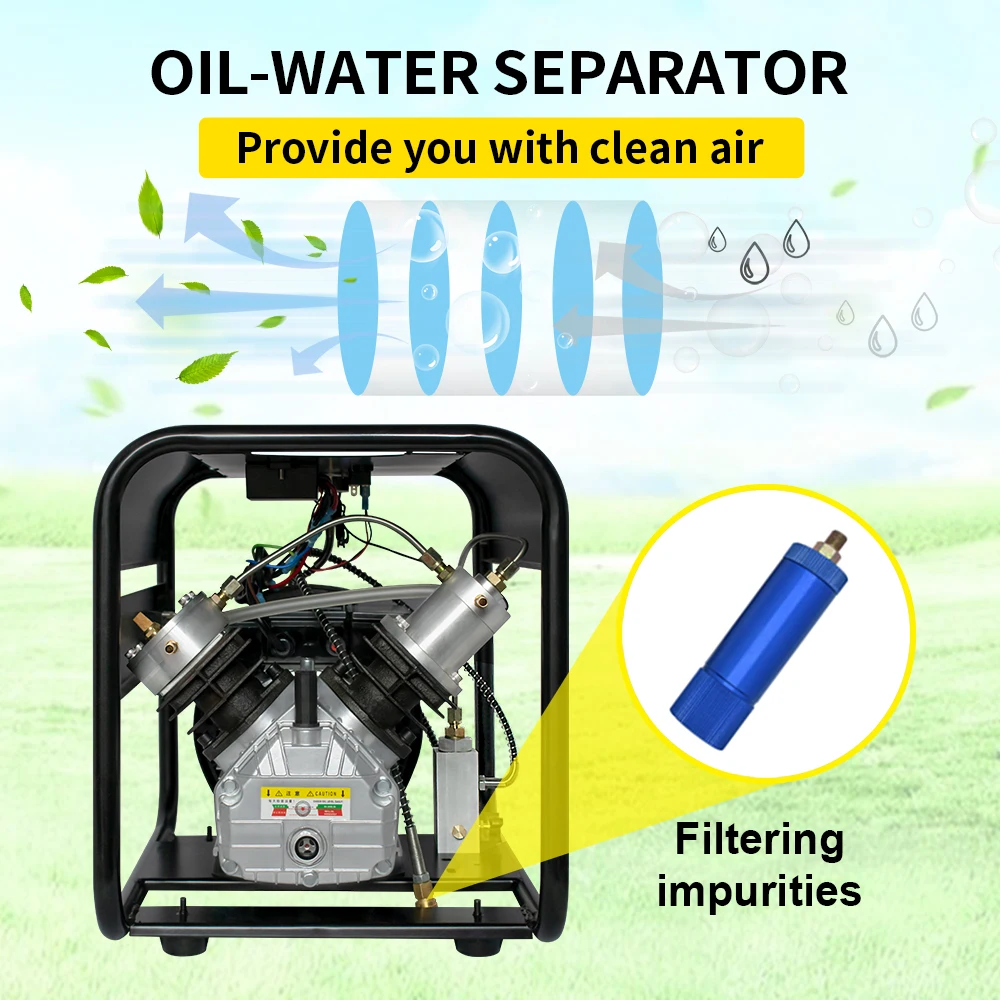

Oil-water Separator
The oil water separator to make the high pressure air more pure,
8 mm quick connector,which can be quickly connected and disconnected.
Fan Water Cooling Heat Dissipation
It is cooled by water and fan; it has a fast heat dissipation performance.effectively protect the motor of the compressor to dissipate heat, and prolong the service life of the compressor.The Maximum temperature is 85℃.Pushing Rods Structure
Z shape piston ringswear resistant
Cooper material,Easy maintenance
Wide Application
This pcp/scuba compressor features oil and water separator filtration. Clean air will be discharged by the machine, suitable for the mini diving bottle, PCP rifle, paintball tank, air pistol, paintball air rifle, fire fighting, leakage detecting, pressure-tight test, air impermeability test, etc.
Package Content
1 x PCP Air Compressor
1 x Water Pump
1 x water Pipe
1 x Home Power Line
1 x Oil Plug
1 x Oil/Water Separator
1 x Filter Cotton
1 x Air Outlet Hose
1 x Repair Kit(vulnerable parts)
